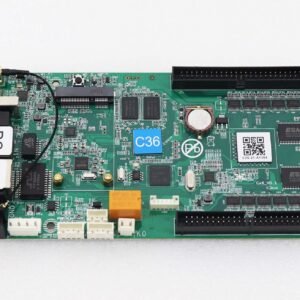

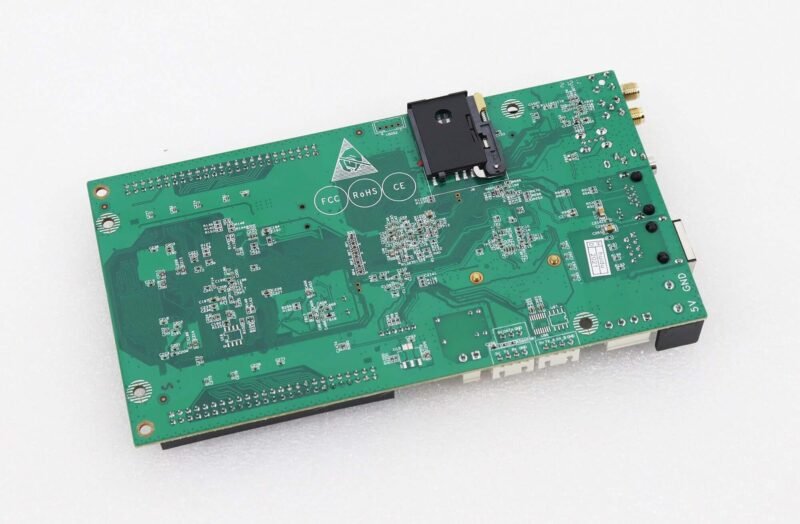

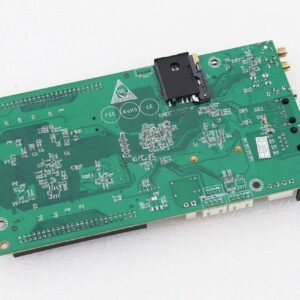

HUIDU HD-C36 HD-C36C Full Color Asynchronous LED Screen Control Card
$80.00 – $143.00
Extra Features
- Full refund for 72 hours
- Free remote instruction for first installation
HUIDU HD-C36 HD-C36C Full Color Asynchronous LED Screen Control Card Features：
- Control Range: 524,288 pixels.
- 4GB memory, support expending memory by U-disk.
- Support HD video hardware decoding, 60Hz frame rate output.
- Support widest 8192 pixel, Highest 1024.
- No need set IP address, it could be identified by controller ID automatically.
- Unified management of more LED display through Internet or LAN.
- Come wiht Wi-Fi, Mobile APP management.
- With a relay to control the power supply remotely.
- Equipped 3.5mm standard audio interface output.
- Support 4G connect to Internet (Optional).

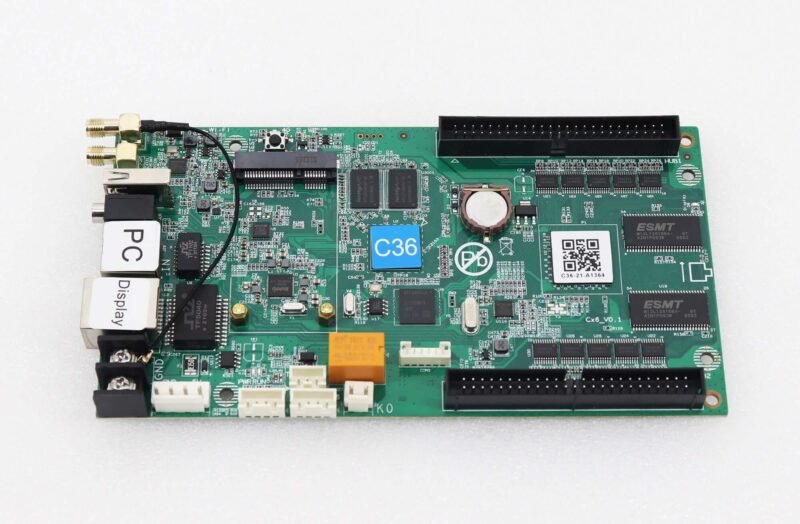

- HD C36 is equipped with 2-wire 50PIN HUB, which can be used for a receiving card.

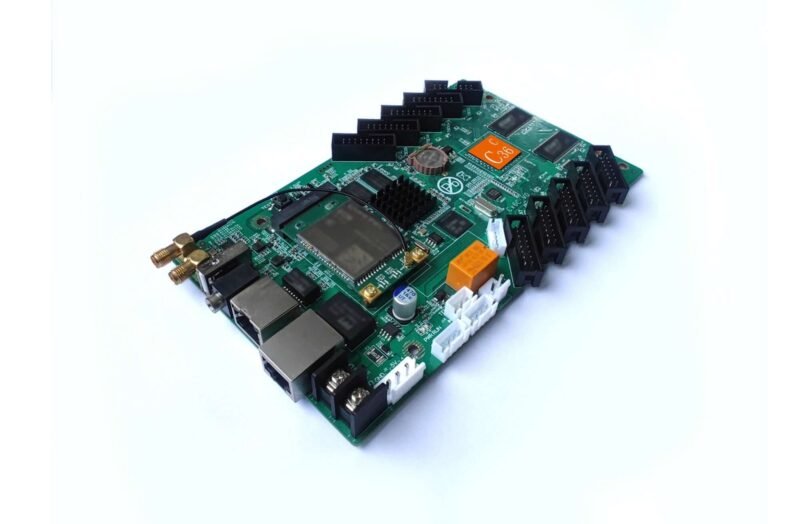

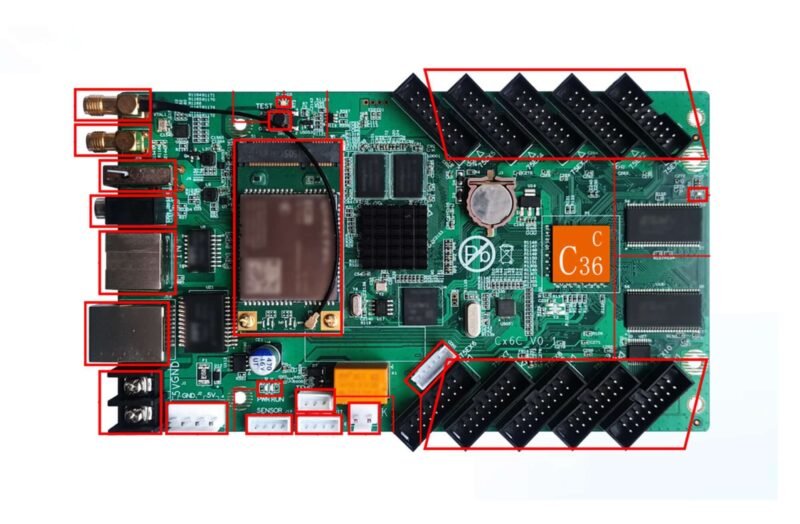

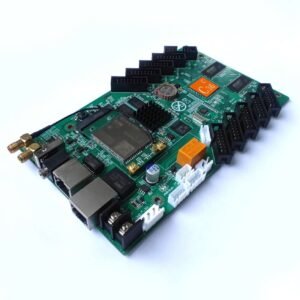

- HD C36C is equipped with 10-wire HUB75E, which can be used for a receiving card.
HUIDU HD-C36 HD-C36C Full Color Asynchronous LED Screen Control Card Control Mode：
- Internet unified management: The play box can be connected to the Internet through 4G (optional), network cable connection, or Wi-Fi Bridge.
- Asynchronous one-to-one control: Update programs by network cable connections, Wi-Fi connections or USB flash drives. LAN (cluster) control can access the LAN network through by network cable connection or Wi-Fi Bridge.
HUIDU HD-C36 HD-C36C Full Color Asynchronous LED Screen Control Card Parameter:
|
Function |
Parameters |
|
Module type |
Compatible with indoor and outdoor full color and single color module Support conventional chip and mainstream PWM chip |
|
Scan Mode |
Static to 1/64 scan mode |
|
Control Range |
1024*512, widest 8192, highest 1024 |
|
Gray Scale |
|
|
Basic functions |
Video, Pictures, Gif, Text, office, Clocks, Timing etc. Remote, Temperature, Humidity, Brightness etc. |
|
Video format |
Support 1080P HD video hardware decoding, direct transmission, without transcoding waiting. AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc. |
|
Image Format |
|
|
Text |
Text editing, Image, Word, Txt, Rtf, Html etc. |
|
Document |
DOC, DOCX, XLSX, XLS, PPT, PPTX etc. Office2007Document format. |
|
Time |
Classic Analog clock, digital clock and of clock with image background. |
|
Audio output |
Double track stereo audio output. |
|
Memory |
4GB Flash memory; Indefinite expanding of U-disk memory. |
|
Communication |
Ethernet LAN port, 4G network (optional), Wi-Fi, USB. |
|
Working Temperature |
-20℃-80℃ |
|
Port |
INPUTS: 5V DC*1, 100 Mbps RJ45*1, USB 2.0*1, test button*1, sensor port*1, GPS port*1. |
|
Power |
8W |
Download Specification
HUIDU HD C36 Full Color Asynchronous LED Screen Control Card Specification
HUIDU HD-C36C Full Color Asynchronous LED Screen Control Card Specification
