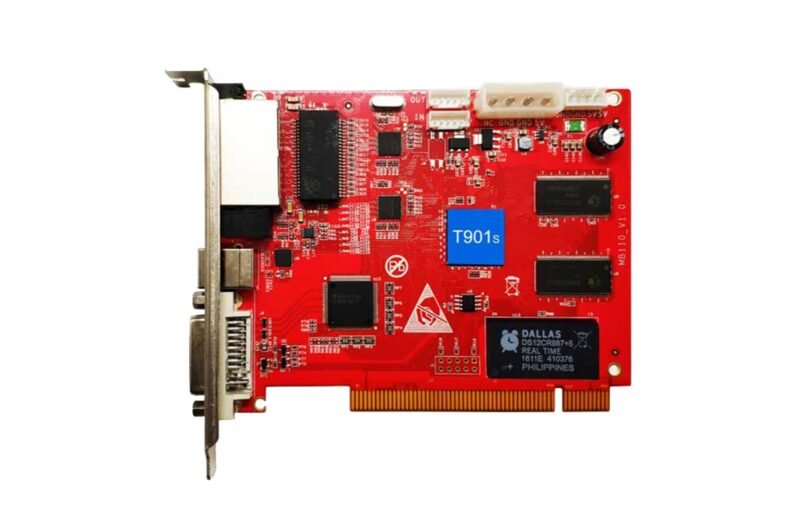

HUIDU HD-T901S LED screen synchronous sending card
$124.00
Extra Features
- Full refund for 72 hours
- Free remote instruction for first installation
HUIDU HD-T901S LED screen synchronous sending card Features：
1. Support 1~64 scan, compatible with indoor and outdoor full color and single color module.
2. Control range: 1.3 million pixels, the widest 3840, and the highest 2048.
3. One DVI video input.
4. Supports up to 65536 grayscale level.
5. Support cascading with serial port to configure multiple sending cards, support sending card cascade to control screen in high resolution.
HUIDU HD-T901S LED screen synchronous sending card Parameters
|
Function |
Parameters |
|
Module type |
Compatible with indoor and outdoor full color and single color module; Support PWM chips and conventional chip |
|
Supports any scanning method from static to 1/64 scan |
|
|
1280*1024@60Hz, 1024*1200@60Hz, 1600*730@60Hz, 1920*640@60Hz, 2048*640@60Hz, 3840*340@60Hz, 512*2048@60Hz 2048*1024@30Hz, 1600*1170@30Hz, 1920*1024@30Hz, 3840*546@30Hz, 1024*2048@30Hz etc. |
|
|
Grayscale |
Support 0-65536 level adjustable |
|
Program update |
DVI synchronous display |
|
Temperature of working environment |
|
|
interface |
Input: 5V power supply terminal, DVIx1, USB 2.0 x1, PCI finger x1, serial cascade x1, Audio x1 Output: 1000M RJ45 x2, serial for cascadingx1 |
|
Power |
5W |
