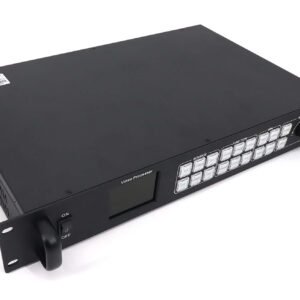

Huidu VP1640 All-in-one LED Screen Video Processor
Original price was: $825.00.$696.00Current price is: $696.00.
Extra Features
- Full refund for 72 hours
- Free remote instruction for first installation
HD-VP1640 is a four windows LED display controller, it have 16 lines Gigabit Ethernet ouput, the loading capacity is 10.4 million pixles, support 6 signal input and can swithing arbitrary, comes with Wi-Fi funciton, support mobile APP wireless control.
Features of Huidu VP1640 All-in-one LED Screen Video Processor
1）Integrated video processor、sending card function, 16 gigabit network port output, total pixels 10.4 million points;
2）6-channel high-definition digital video input, DP up to 4K@60Hz input;
3）Multiple audio input and output;
4）Support four live windows display , POP;
5）Fast switching of any channel;
6) Parameter setting and saving function, scene preset saving and recalling;
7) The “Navigation Settings” function is convenient for quick settings;
8) The “connection setting” function does not require computer control, and directly sets the connection parameters of each cabinet through the panel buttons;
9) The device can be debugged and controlled through the panel buttons, USB, Wi-Fi (mobile APP, developing)
Parameters of Huidu VP1640 All-in-one LED Screen Video Processor
|
DVI Input |
1 Interface form: DVI-I socket Signal standard: DVI1.0 Resolution: VESA standard, PC to 1920×1200, HD to 1080p |
|
HDMI Input |
2 Interface form: HDMI-A Signal standard: HDMI1.4 backward compatible Resolution: VESA standard,≤3840×2160@30Hz |
|
DP Input |
2 Interface form ：DP Signal standard:DP1.2向下兼容 Resolution: VESA standard,≤3840×2160@60Hz |
|
EXT Input |
1 DVI or SDI，Default standard DVI |
|
AUDIO IN |
Input x1，3.5mm audio port |
|
AUDIO OUT |
Output x1，3.5mm audio port |
|
Network port Output |
16-way network port output interface，connected to the acceptance card，total pixels1040W，Widest 16000，Highest 3840 Each network port carries 65W pixels, and the widest single network port is 2048 pixels and the highest is 2048 pixels. |
|
RS232 |
The integrated control host (i.e. central control) can be connected through RS232 |
|
Square USB port (Type B) |
Connect to the PC, debug the parameters of the sending card and receiving card, and program upgrades through HDSet software. |
|
Wi-Fi |
Support mobile phone APP for sending card, receiving card parameter debugging, program upgrade, etc.— developing |
|
Power interface |
100-240V~50/60Hz |
|
Whole machine power |
<=75W |
|
Weight |
<=3.6kg |
|
Size（mm） |
Case size：（Length）482mm*（width）302.8mm*（hight）65.5mm |
|
Machine case |
1.5U standard industrial chassis |

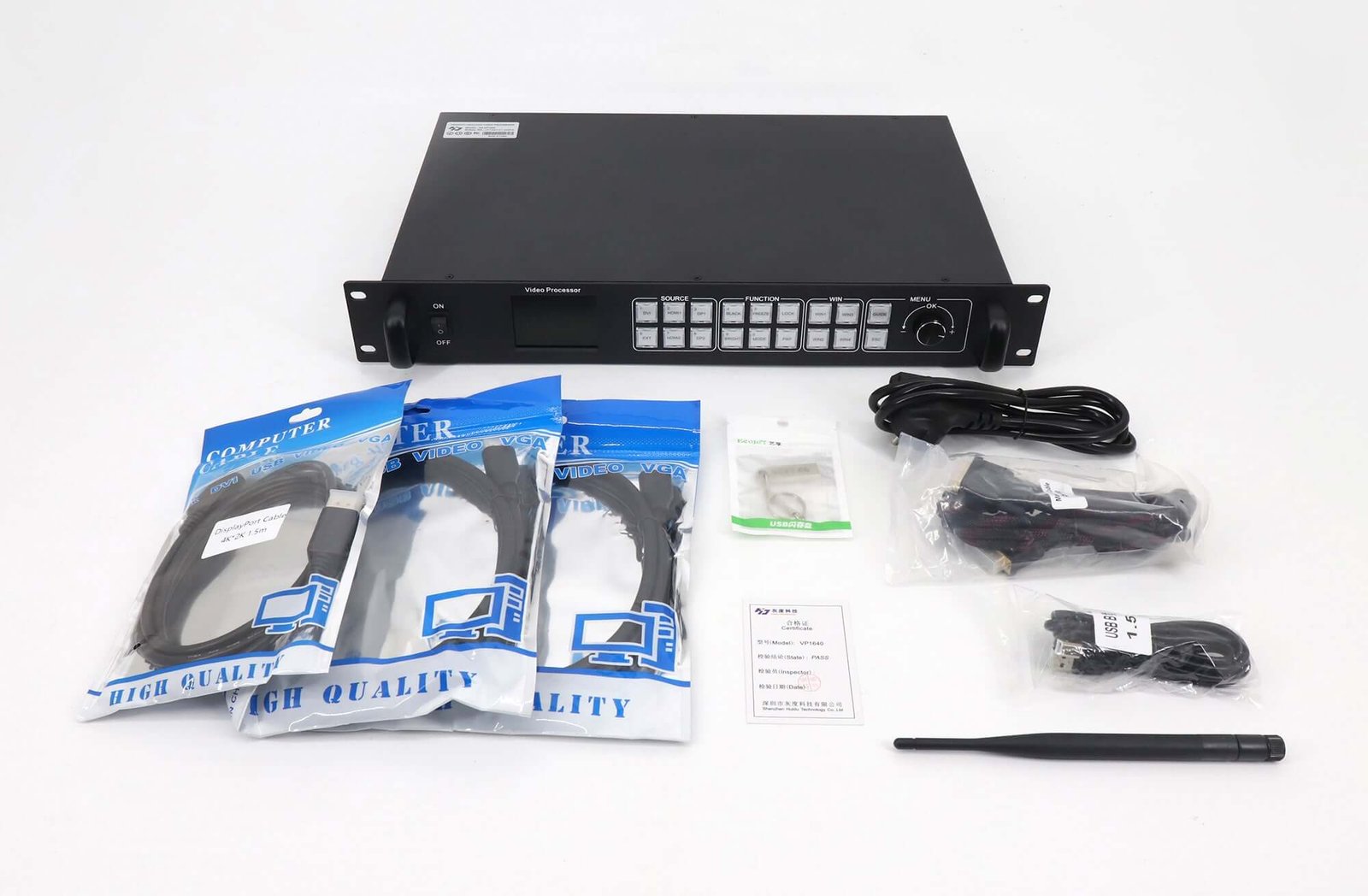

More Pictures of Huidu VP1640 All-in-one LED Screen Video Processor
Download Specification
Huidu VP1640 All-in-one LED Screen Video Processor Specification
Huidu VP1640 All-in-one LED Screen Video Processor User Manual
