VDwall LVP615U HD LED Video Processor Price
$480.00
Extra Features
- Full refund for 72 hours
- Free remote instruction for first installation
VDwall LVP615U HD LED Video Processor Features:
1.New generation Faroudja Real Color professional LED video processor. 10+ Bit Faroudja DCDI Cinema Processing and Faroudja TureLife Video Enhancer
2. Two signal switching ways: one button to switch and pretake + Take switching
3. Seamless switching, Fade-in/Fade out & Blend switching in different input signals
4. 3 custom PIP/PBP display modes to switch by one button. Any PIP/PBP display
5. AIAO(Any In Any Out) function allows for displaying any capturing picture in specific area on the screen
6. User define output format to reach maximal horizontal width 3840 or vertical height 1920
7. User define DVI EDID to realize pixel-to-pixel display
8. DVI loop to install multi-unit in parallel to drive indefinite LED lattice . Frame synchronous techology, no miss alignment or delay between two adjacent image output.
9. Convenient operation by panel/PC software/ infrared remote contol/Wi-Fi
10.Smart chip 4 core 64-bit processor, multi-core 3D CPU 4K / 2K 60FPS hard decoding
11.Plug and play USB interface, fast input
12.Supports multiple audio, video and file formats
13.Intelligent WIFI networking, full platform coverage, can play network resources
14.Support mobile phone wireless operation, support Airplay DNLA Miricast compatible with iOS Android and Windows operating system
15.Mobile phone operation to support the source switch, splicing, freeze and picture in the opening and closing
Feature one:Wireless Wi-Fi control&remote control:
Feature two:PIP/PBP,text overlay:
Feature three: Synchronic Multi-uit In Parallel:
VDwall LVP615U HD LED Video Processor Specification:
|
Inputs |
||||
|
Number/type |
2×Video 1×YPbPr 2×VGA（VESA） 1×DP（VESA） 1×DVI（VESA） 1×HDMI （VESA/CEA-861） 1×EXT. （2*USB+WIFI） |
|||
|
Video system |
PAL/NTSC |
|||
|
Composite video amplitude /Impedance |
1V（p_p）/ 75Ω |
|||
|
YPbPr format |
SD/HD（CEA -861） |
|||
|
YPbPr Amplitude /Impedance |
Y= 1.0V（p_p）/ 75Ω Pb= 0.35V（p_p）/ 75Ω Pr= 0.35V（p_p）/ 75Ω |
|||
|
VGA format |
PC（VESA） |
≤2048×1152 _60Hz |
||
|
VGA Amplitude /Impedance |
R、G、B = 0.7 V （p_p）/ 75Ω |
|||
|
DP format |
DisplayPort1.1 （VESA） |
|||
|
DVI format |
PC（VESA） |
≤2304x1152_60Hz |
||
|
HDMI1.3 （CEA -861） |
||||
|
Custom output format |
width≤3840 height≤1920 |
|||
|
HDMI format （HDCP1.3） |
PC（VESA） |
≤2304x1152_60Hz |
||
|
HDMI1.3 （CEA -861） |
≤1920x1080p_60Hz |
|||
|
SDI format |
SMPTE259M-C SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M |
480i_60Hz 576i_50Hz 720p、 1080i、 1080p |
||
|
audio |
2.0Vp-p/10K? |
|||
|
Input connectors |
Video：BNC YPbPr：BNC×3 VGA：15pin D_Sub(female) DP：DisplayPort DVI：24+1 DVI_D HDMI：HDMI port A type SDI ：BNC |
|||
|
Outputs |
||||
|
Number /Type |
1×VGA （RGBHV） 2×DVI |
|||
|
VGA/DVI resolution |
1024×768_60Hz /75Hz 1080×1920_60 Hz 1200×1600_60 Hz 1280×1024_60Hz /75Hz 1366×768_60Hz 1440×900_60Hz 1536×1536_60 Hz 1600×1200_60Hz 1920×1080p_50Hz /60Hz 1920×1200_60 Hz 2048×1152_60Hz 2304×1152_60Hz 2560×816_60Hz Custom output format （maximum output horizontal 3840 pixels or vertical 1920 pixels.） |
|||
|
VGA Amplitude /Impedance |
R、G、B = 0.7 V（p_p）/ 75Ω |
|||
|
Output ports |
VGA OUT： 15pin D_Sub ( female) DVI OUT1： 24+1 DVI_D DVI OUT2： 24+1 DVI_D |
|||
|
Others |
||||
|
Control methods |
Wireless wifi, IP/LAN,front panel button, infrared remote control, PC software. Ipad, mobile phone terminal and etc.. |
|||
|
Input voltage |
100-240VAC 50/60Hz |
|||
|
Maximum power consumption |
≤25W |
|||
|
Environment temperature |
0-45 ℃ |
|||
|
Environment humidity |
15-85% |
|||
|
size（package） |
130mm（H） ×350mm（W）×520mm（L） |
|||
|
Weight |
G.W.：5.7 Kg, N.W.：4.0 Kg |
|||

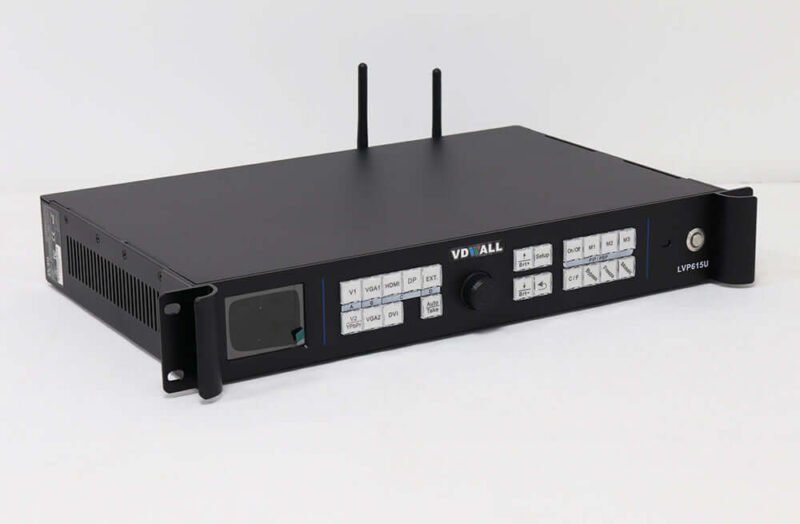

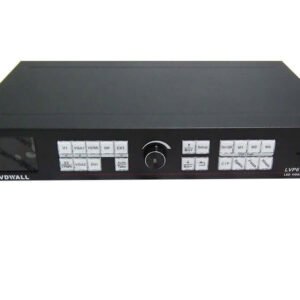

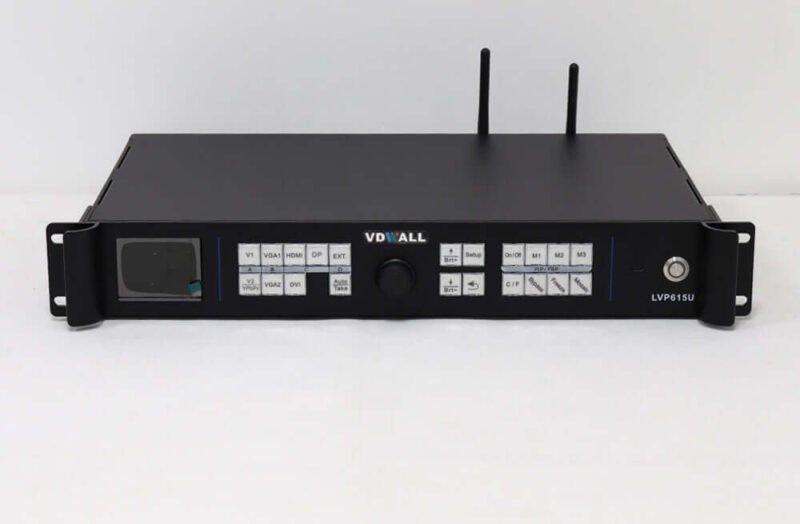

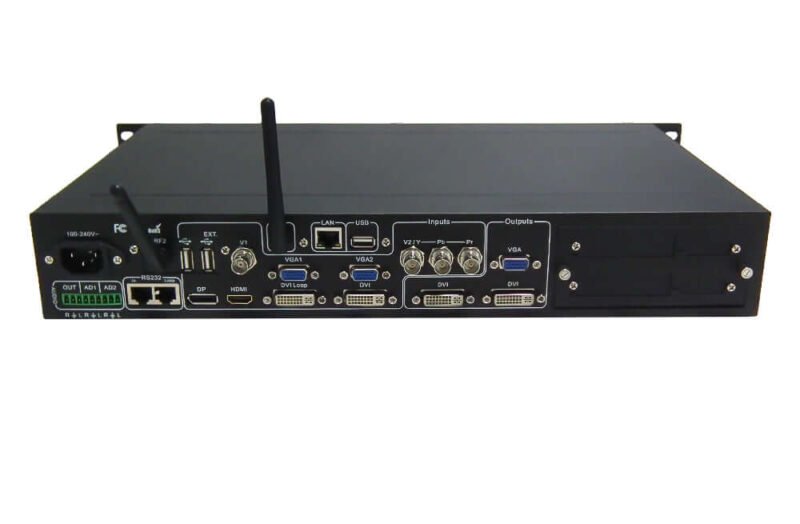

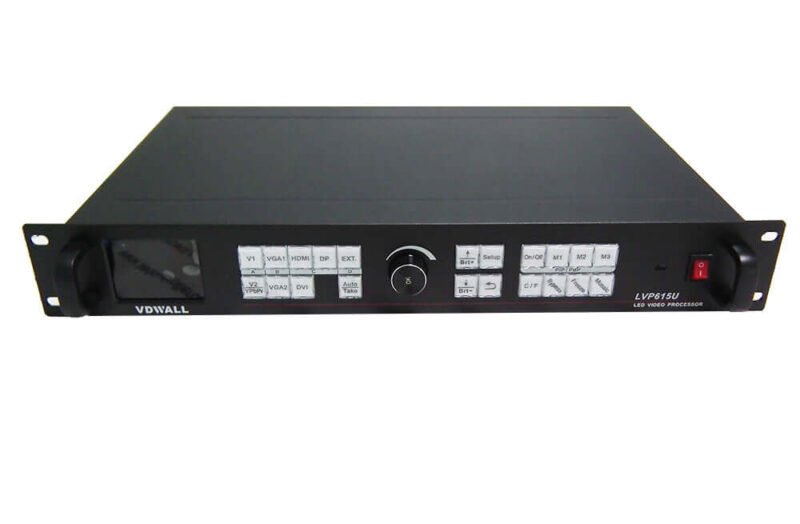

More Pictures of VDwall LVP615U HD LED Video Processor Price：
VDwall LVP615U HD LED Video Processor Download:
Overview of VDwall LVP615U HD LED Video Processor Price V1.0
